CAR STRUCTURAL COMPONENTS IMAGING & INSPECTION

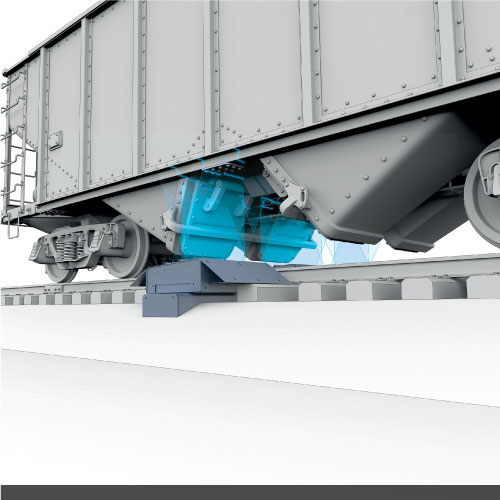

CSCView® is an automatic undercarriage imaging and inspection system that inspects undercarriage structural components of all rolling stock types at mainline operational speeds.



Features

System Features

  • Bi-directional system​
  • Inspection and measurement at mainline operational speeds​
  • Operates in extreme environments
  • Installed in track using a steel sleeper (tie)​
  • Easy maintenance​
  • Air purge unit for system cleaning​
  • Automatic defect reporting

Software Features

  • Digital image acquisition/processing​
  • AEI (RFID) integration​
  • Automatic reporting​
  • Web-based database/visualization (with Trimble CMMS™ (Condition Monitoring Management System) or TrainWatch™ software)​
  • Remote monitoring/control
View Brochure
Contact Us
Specifications
Function Wheel profile measurement
Application
  • Locomotive
  • Freight & heavy haul
  • High speed
  • Passenger
  • Metro
  • Tram
Installation Location
  • Mainline
  • Depot
  • Yard
Operating Speed  Inspection and measurement at mainline operational speeds
Inspections &
Measurements
  • Floor support inspection
  • Center sill crack detection
  • Brake beam inspection
  • Missing bolt(s) detection for coupler and draft gear carrier plates
  • Missing knuckle pin detection
  • Missing uncoupling lever detection
  • Draw gear bottle and follower block separation
  • Axle scoring detection
  • Bent headstock detection
Operating
Temperature		 Operates in extreme environments
Power Requirements
  • 110V AC or 220V AC
  • 9kW
Periodic
Maintenance
  • Annual inspection & service
  • Quarterly inspections
Installation Position
  • In track/steel sleeper (tie)
Remote Diagnostics Yes
Automatic Health
Reporting		 Yes
AEI/RFID Integration Yes
Air Purge Unit Yes
